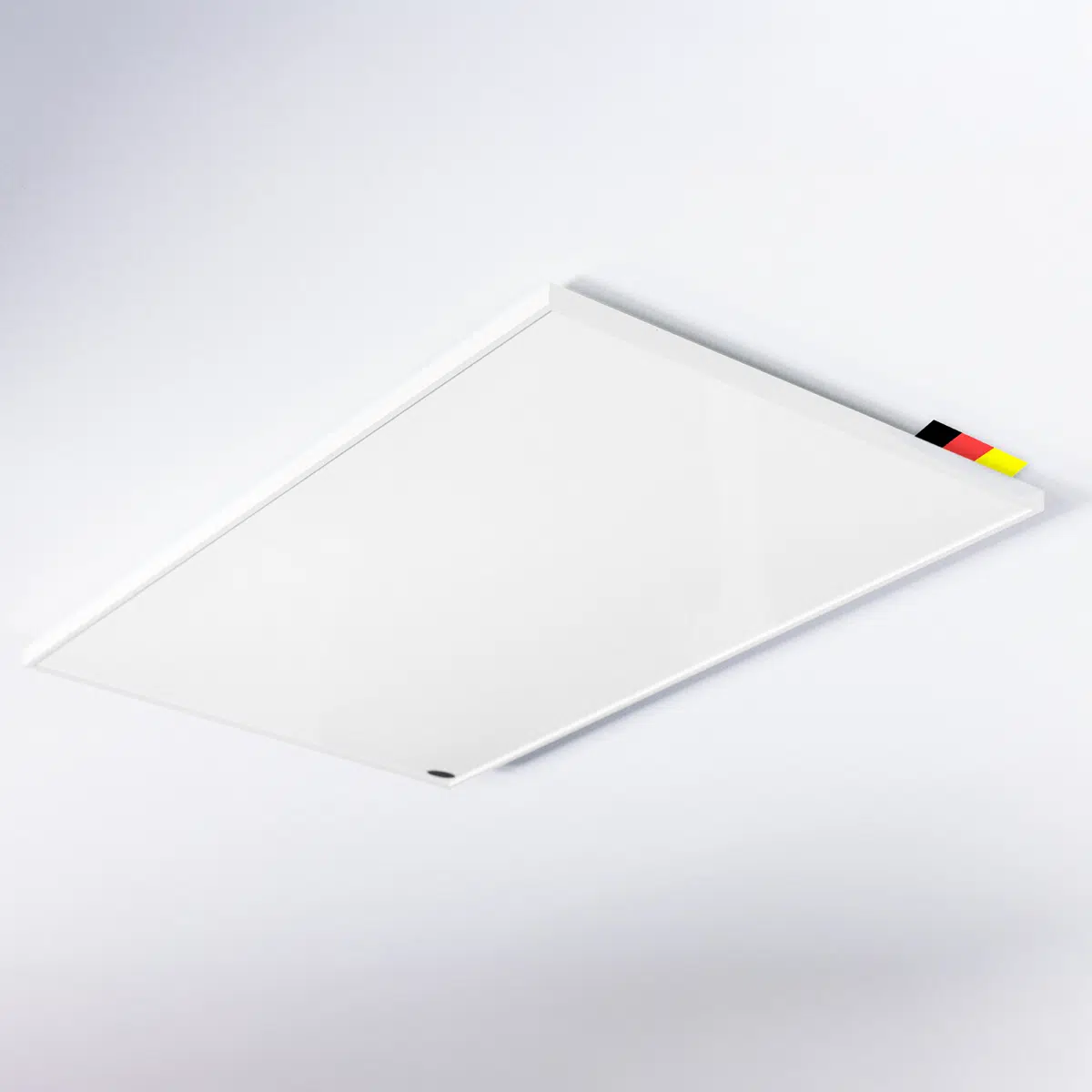

M-Series (Ceiling Heater)

Ab 175,92€ incl. VAT

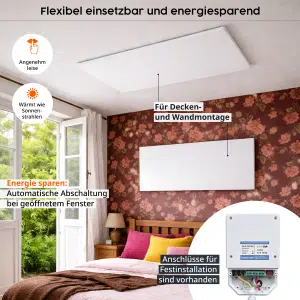

Suitable for ceiling and wall mounting.
Permanent installation possible; warranty remains valid.
Comes standard with a 1.80 m cable and plug.
Battery-operated transmitter BT710 (optional) with optional receivers BT001, BT002, or BT003, or without control unit.
ATTENTION: This M-Series model is not compatible with the M-Series Smart room thermostat.

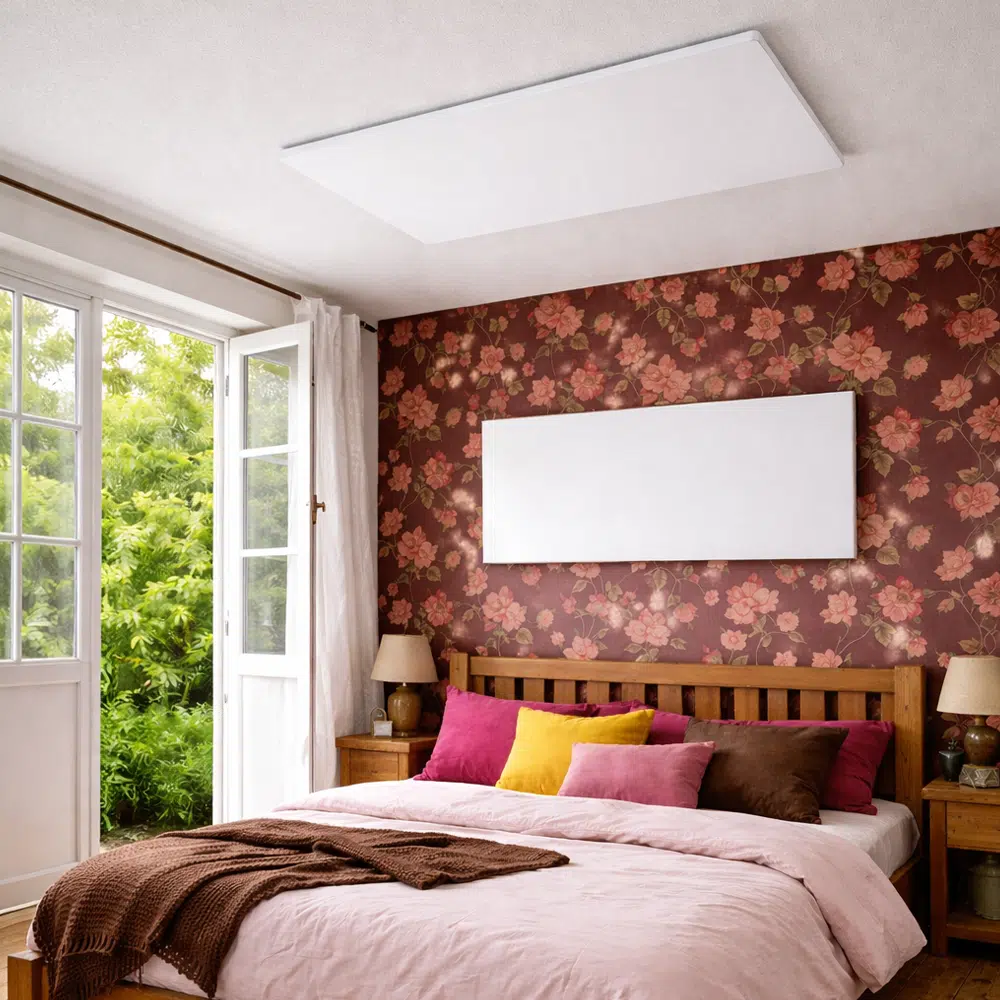

Suitable for ceiling and wall mounting.
Permanent installation possible; warranty remains valid.
Comes standard with a 1.80 m cable and plug.
Battery-operated transmitter BT710 (optional) with optional receivers BT001, BT002, or BT003, or without control unit.
ATTENTION: This M-Series model is not compatible with the M-Series Smart room thermostat.

Wattage:

300300

350350

450450

600600

800800

10001000

12001200

Radio control:

+ BT710 transmitter + BT002 surface-mounted receiver+ BT710 transmitter + BT002 surface-mounted receiver

+ BT710 transmitter + BT001 flush-mounted receiver+ BT710 transmitter + BT001 flush-mounted receiver

Transmitter BT710 + Plug-in Receiver BT003Transmitter BT710 + Plug-in Receiver BT003

without

Clear

Quantity:

Fastest delivery

Delivery time: 2–3 working days (excluding weekends and public holidays)

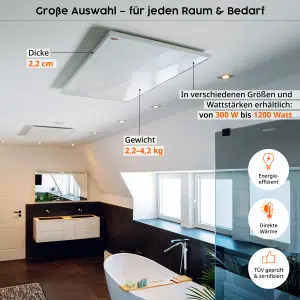

Wattage/dimension
300 W | 50 x 60 x 2.2 cm*

350 W | 60 x 60 x 2,2 cm*

450 W | 50 x 90 x 2.2 cm*

600 W | 60 x 100 x 2,2 cm*

800 W | 60 x 100 x 2,2 cm*

1000 W | 60 x 120 x 2,2 cm*

1200 W | 60 x 120 x 2,2 cm*

*Frame depth. The product depth incl. spacer is 2.9 cm
Heat output per m²
Depending on the insulation and other room conditions such as windows, exterior walls, etc.

300 W | 3-8 m²

350 W | 4-10 m²

450 W | 5-12 m²

600 W | 8-16 m²

800 W | 11-21 m²

1000 W | 14-26 m²

1200 W | 18-29 m²
Weight
2.5-10 kg
Cable length
180 cm
Connection
Plug or fixed wiring
Protection class
IP44
Surface temperature
75-125 °C (with overheating protection)
Surface-mounted/flush-mounted thermostat
Our recommendation: BT001 (wireless flush-mounted receiver) in combination with BT710 (mobile wireless room thermostat)
Instructions
Click here for the instructions.

With our royal family infrared heating, we offer a large selection of different models - like to look around!

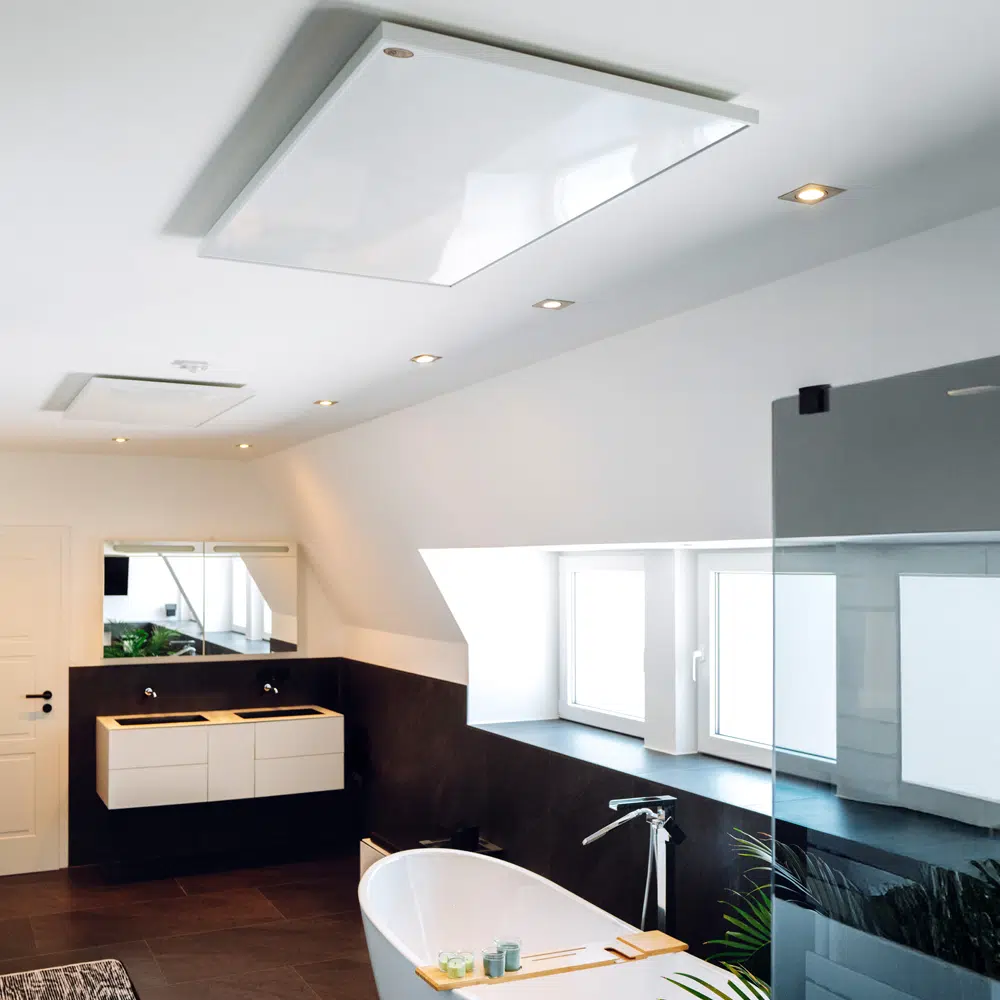

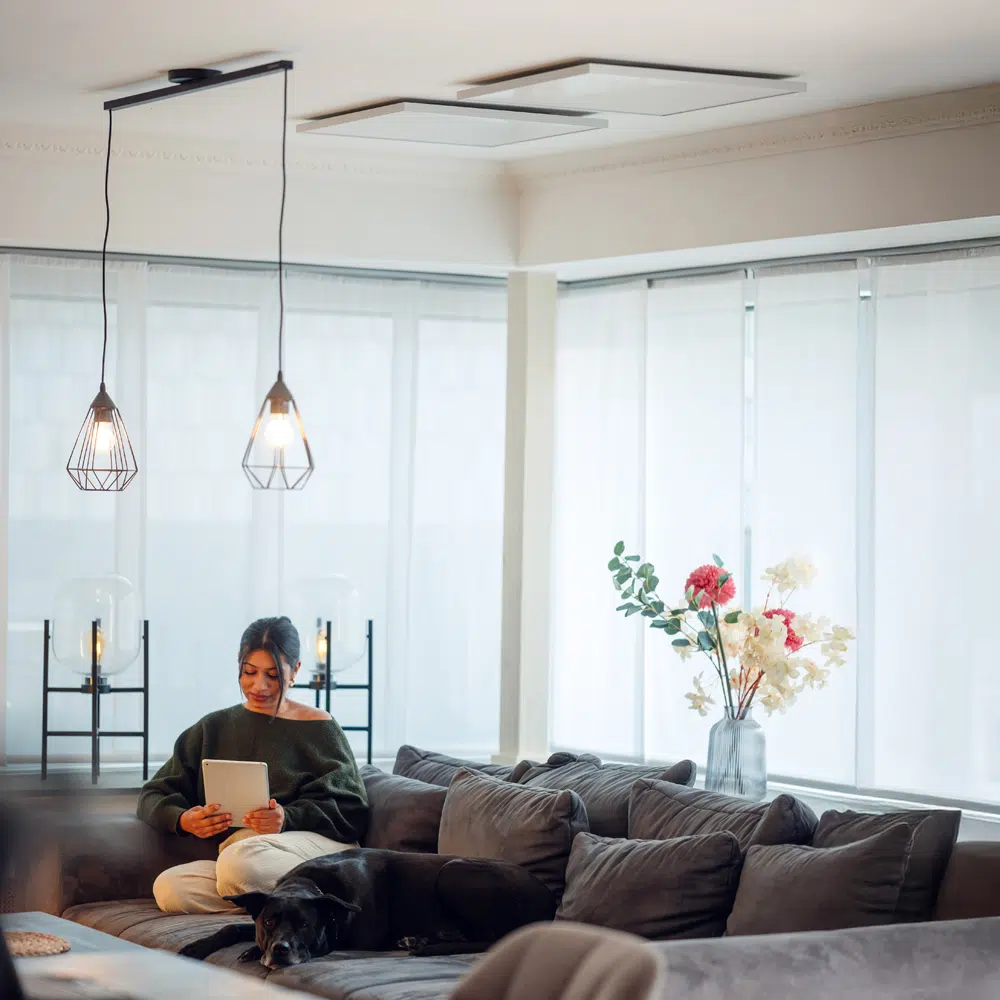

About the M series for installation on the ceiling

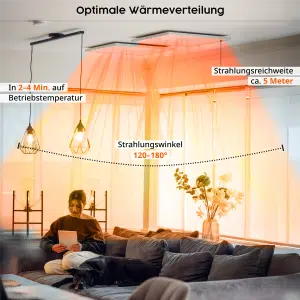

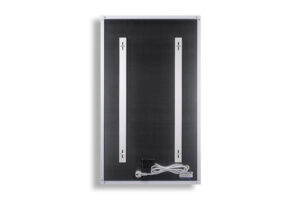

Behind the M series is a Könighaus infrared heater for ceiling mounting. The heating panel for your ceiling is unobtrusive and space-saving. The heat distribution in the room is particularly even and efficient. Unlike wall-mounted infrared heaters, the rear panel is made of thermally conductive aluminum and has two fixing elements that also act as spacers. This allows a constant supply of air between the ceiling and the infrared heater. The connection to the power supply can be made via a socket or fixed cabling. For the latter option, we recommend working with a qualified electrician. The M series is also suitable for wall mounting and is therefore very versatile.

EU Regulation

This product complies with EU Regulation 2015/1188 Art. 3 II in combination with a thermostat. It achieves an efficiency of 98%. Only use the appliance with a thermostat, such as the TS10 recommended by us in this or other offers. You can find more information about this in our operating instructions.

This product is only suitable for well-insulated rooms or for occasional use.

(EU Regulation 2015/1188 Article 3, Annex II b) II (2))

For operation as a permanently mounted wall or ceiling heater, a suitable room temperature controller/thermostat is required. Without a suitable controller, the heater must not be operated as a fixed installation. Use without a thermostat is only intended as a mobile free-standing unit with appropriate stands.

Without a thermostat, this infrared heater is not intended for direct heating of people. Use without a thermostat is only permitted in protected outdoor areas, or indoors for heating walls or animals. Use for heating people is only permitted with a suitable thermostat.

The TÜV certificates can be viewed on the TÜV SÜD website under the Könighaus brand. The certificate numbers are as follows:

Product/article	Model designation	Certificate number
Wall/image/standing infrared heater 130W	P130	Z1A 091463 0016 Rev. 00
Wall/image/standing infrared heater 300W	P300	Z1A 091463 0016 Rev. 00
Wall/image/standing infrared heater 450W	P450	Z1A 091463 0016 Rev. 00
Wall/image/standing infrared heater 600W	P600	Z1A 091463 0016 Rev. 00
Wall/image/standing infrared heater 800W	P800	Z1A 091463 0016 Rev. 00
Wall/image/standing infrared heater 1000W	P1000	Z1A 091463 0016 Rev. 00
Wall/image/standing infrared heater 1200W	P1200	Z1A 091463 0013 Rev. 00
Ceiling infrared heater 300W	M300	Z1A 091463 0016 Rev. 00
Ceiling infrared heater 360W	M360	Z1A 091463 0016 Rev. 00
Ceiling infrared heater 450W	M450	Z1A 091463 0016 Rev. 00
Ceiling infrared heater 600W	M600	Z1A 091463 0016 Rev. 00
Ceiling infrared heater 800W	M800	Z1A 091463 0016 Rev. 00
Ceiling infrared heater 1000W	M1000	Z1A 091463 0016 Rev. 00
Ceiling infrared heater 1200W	M1200	Z1A 091463 0013 Rev. 00
Glass infrared heater 300W	Glass 300W	Z1A 091463 0014 Rev. 00
Glass infrared heater 450W	Glass 450W	Z1A 091463 0014 Rev. 00
Mirror infrared heater 300W	Mirror 300W	Z1A 091463 0014 Rev. 00
Mirror infrared heater 450W	Mirror 450W	Z1A 091463 0014 Rev. 00
Infrared heater with on/off switch 600W	E600	Z1A 091463 0016 Rev. 00
Desk heater 300W	B300	Z1A 091463 0016 Rev. 00
